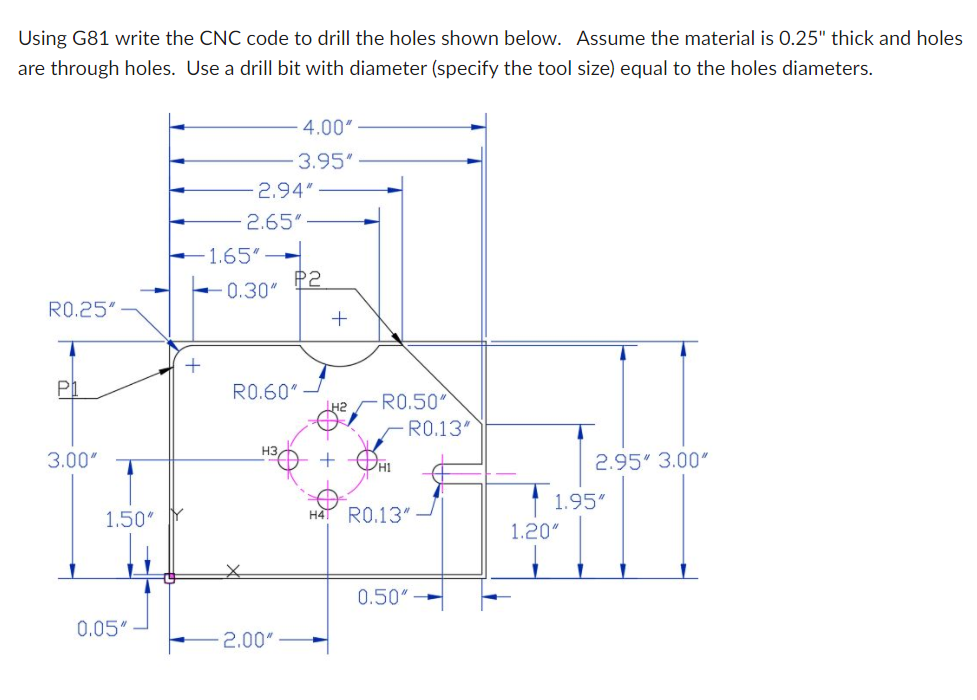

G81 Cnc Code. Solved Using G81 write the CNC code to drill the holes shown What is the difference between G81 and G82? G82 is very similar to G81 except that G82 has the option to add a dwell at the bottom of the hole. G81 is the standard drilling cycle that produces our holes with just a few lines of code.
Learn CNC Canned Cycles G81 G84 G73 CNC Training Centre from www.cnctrainingcentre.com
It then rapids the Z axis down to 1mm above the part R1 The G81 drilling cycle simplifies drilling operations, specifying position, depth, retract value, and feed rate in a single line of code.
Learn CNC Canned Cycles G81 G84 G73 CNC Training Centre
Z-12.0 is the final depth of the drilled hole and F250.0 is our feed rate Often it's quicker and easier to write the G-Code manually N30- Drilling starts (G81) at X10 Y30 with cutting-feed (F75) drill will retract to R-plane after drilling operation
Quick Guide to the G83 CNC Code [Peck Drilling]. G81 Z-12.0 F250.0; X50.0; X50.0 Y40.0; G80; G81 Z-12.0 F250.0; - The G81 G-Code tells the machine that we wish to use a standard drilling cycle N2- Tool rapidly moves to first drilling position X0.3 Y1.2 while taking into account Zero-offset-no
G Code CNC Milling G81 G83 มาได้อย่างไร... YouTube. N40- Next drilling position Y10 (as G99 is a modal g-code drill will keep on retracting to R-plane until G98 is given) The G81 Cycle instructs it to drill a hole 6mm deep (Z-6.) at a feed of 200mm per minute (F200.) When the hole is done it rapids back to the initial point (Z3.) This was in the line
